Tektronix RF Spectrum Analyzers & Signal Analyzers

  • RSA306B: Compact and Portable Spectrum/Signal Analyzer
  • RSA500 Series: Rugged and Portable Spectrum/Signal Analyzer
  • RSA600 Series: High Fidelity, Compact Spectrum/Signal Analyzer
  • RSA5000B Series: Advanced Spectrum/Signal Analyzer
  • RSA7100B: Ultra-Wide Bandwidth Analysis and Recording Spectrum/Signal Analyzer

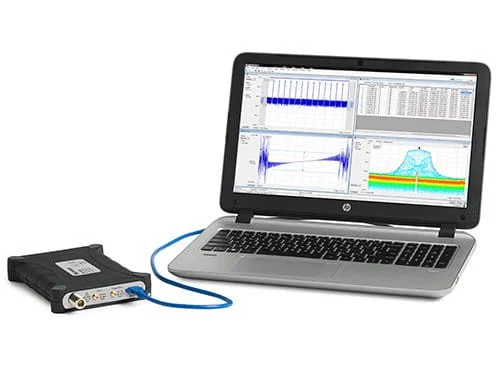

RSA306B: Compact and Portable

Benchtop performance meets definitive portability with the industry’s highest fidelity, lowest noise real time spectrum analyzer, at an amazingly low price.

  • Up to 6.2 GHz frequency coverage
  • 40 MHz real-time signal acquisition bandwidth
  • Powered by USB3.0
  • 0.73 kg (1.6 lbs.)

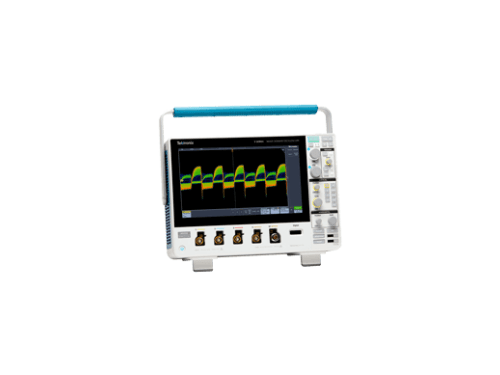

3 Series MDO Mixed Domain Oscilloscope

Whether you’re testing your baseband design for IoT or just for simple EMI sniffing, you should have the 3 Series MDO readily available on your bench. Unlike other oscilloscopes that offer software processed FFT “spectrum analysis”, the 3 Series has a unique true hardware spectrum analyzer built right in with superior RF test performance and guaranteed RF specifications.

  • 1 GHz or 3 GHz built-in spectrum analyzer options
  • Industry’s only true integrated spectrum analyzer hardware on oscilloscopes
  • Ultra-wide capture bandwidth up to 3 GHz

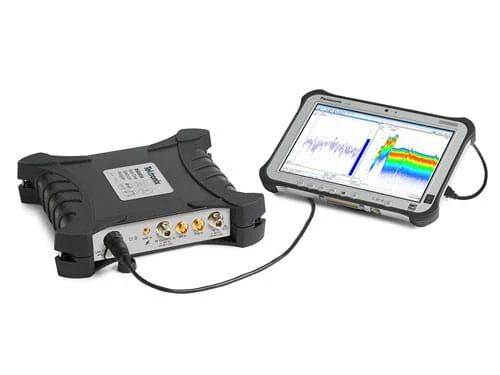

RSA500 Series: Ultimate in Rugged Portability

Real-time situational awareness in a rugged, portable form factor, the industry’s best for scanning, analyzing, and recording Radio Frequency signals when you need to, where you need to.

  • Up to 18 GHz frequency coverage
  • 40 MHz real-time signal acquisition bandwidth
  • Battery or line powered
  • 1.1 kg (2.43 lbs.)
  • Optional tracking generator

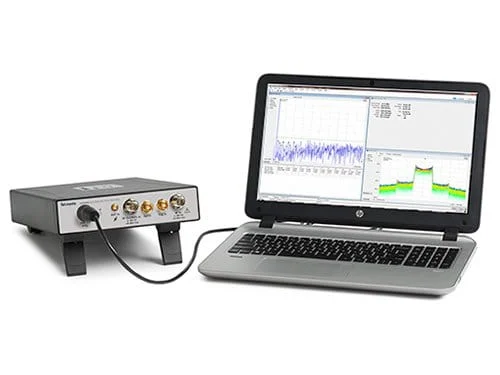

RSA600 Series: High Fidelity, Compact Size

Ideal for cramped spaces in the lab or production line, the RSA600 series provides advanced capture, identify and analyze capabilities utilizing the power of your PC in a compact form factor.

  • Up to 7.5 GHz frequency coverage
  • 40 MHz real-time signal acquisition bandwidth
  • Line powered
  • 2.79 kg (6.15 lbs.)

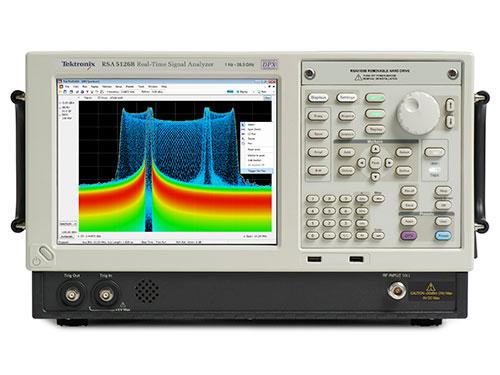

RSA5000B Series: Advanced Signal Analysis

Accelerate troubleshooting and analysis with best in class RF performance in a mid-range real-time Spectrum Analyzer.

  • Up to 26.5 GHz frequency coverage
  • Up to 165 MHz real-time signal acquisition bandwidth
  • 0.434 μs Minimum Event Duration for 100% POI

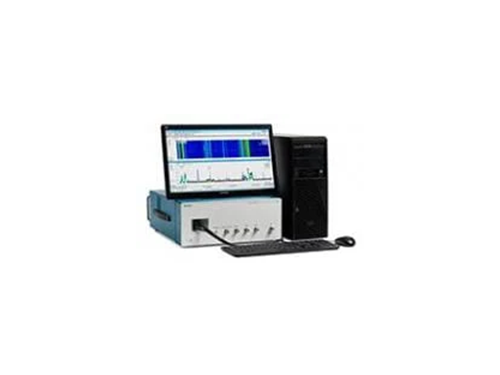

RSA7100B: Ultra-Wide Bandwidth Analysis and Recording

Scan RF signals faster with flexibility to record, stream and analyze data in real time, at full bandwidth.

  • Up to 26.5 GHz frequency coverage
  • Up to 800 MHz real-time signal acquisition bandwidth
  • IQFlowTM streaming to RAID, LVDS, 40 GbE and an API provides the speed and flexibility needed to perform real-time DSP algorithms, and record/analyze long event sequences
